Seamless communication across systems
CNHF Evolve is a turn-key solution that enhances the performance of existing HF and VHF radios and enables interoperability between legacy radios from different vendors. Evolve allows legacy systems to be upgraded into a secure and digital communications environment – extending system lifecycle without replacing functional equipment. The compact, low-power device brings secure voice, data, end-user services, and modern interfaces into legacy platforms. For legacy digital radios, Evolve also improves performance and easier integration with other systems.
A complete solution
Evolve features a complete built-in protocol stack and communication services — including a webmail client — eliminating the need for separate software or external protocol services. With everything integrated into a single device, Evolve ensures reliable, seamless communication and a simplified, more secure system architecture.
Reliability in every environment
Robust waveform ensures reliable communication in denied environments — no need for GNSS or SATCOM. Operate beyond line of sight with full national control and sovereignty over your communication capabilities
Future-proof technology
CNHF Evolve is more than just a modem – it’s a platform with modern hardware and software architecture with regular updates and feature scalability.
Ease of use

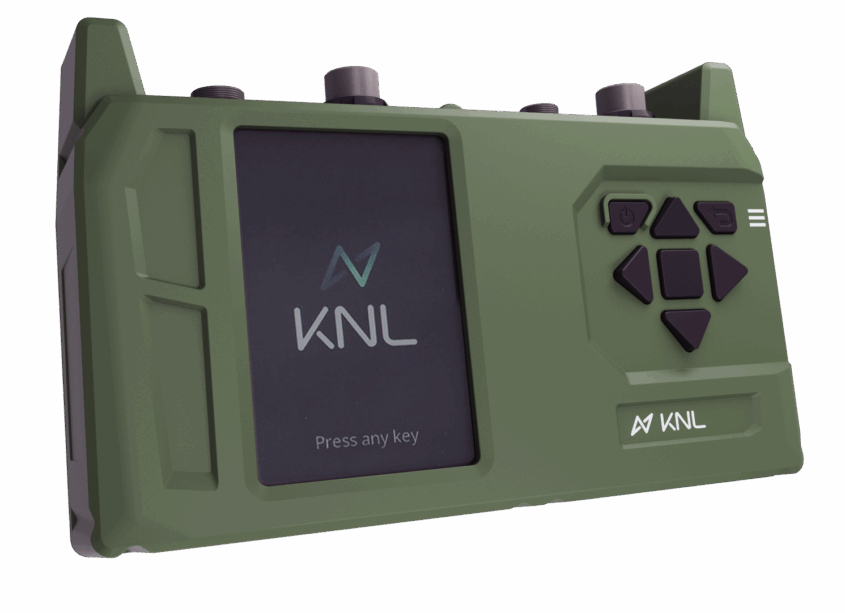

Compact and portable, with no need for additional software. Features an intuitive web-based user interface—just like all our CNHF products—alongside Evolve’s local UI. Supports versatile power input options: from the connected radio, via USB-C, or using internal batteries.
Built for security
Designed and manufactured in a NATO country, ensuring secure production, availability, and maintenance along with strict security standards. Users maintain complete control over their encryption keys, management, and operation capabilities, eliminating dependence on external security providers.
Product sheet
Read more about technical specifications.
Watch the CNHF Evolve webinar
Learn how CNHF Evolve delivers secure, interoperable communication across legacy HF and VHF radios from different vendors – extending the lifecycle of existing systems with modern digital services.
Would you like to chat with an expert? Contact us today!
Technical specifications:
General
| Software platform | Linux |
|---|---|
| Radio Frequency Band | HF, VHF, UHF |
| Dimensions | 110mm (H) x 173mm (W) x 37.5mm (D) |
| Weight | ~600g (with batteries) |
| Power Source | DC input, USB-C or internal batteries |
| DC input | 9-32 VDC |
| Battery type | 2x18650 cell |
Waveform - CNHF robust mode
| Data Rate | Up to 19.2 kbit/s (depending on radio capabilities) |
|---|---|
| FEC | Yes |
| Security | AES256 encryption, static & changing keys |
| ALE | Asynchronous GNSS independent ALE |
| Linking Channels | Unlimited |
Interfaces
| Radio | RS-232 serial interface, audio input & output, PTT output, 9-32 VDC power input |
|---|---|
| Audio | Analogue handset interface |
| Ethernet | Built-in 100 Mbit/s interface |
| GNSS | Built-in GPS, GALILEO, GLONASS, BEIDOU (commercial) module and antenna |
| LTE | Built-in 2G/3G/LTE module and antenna |
